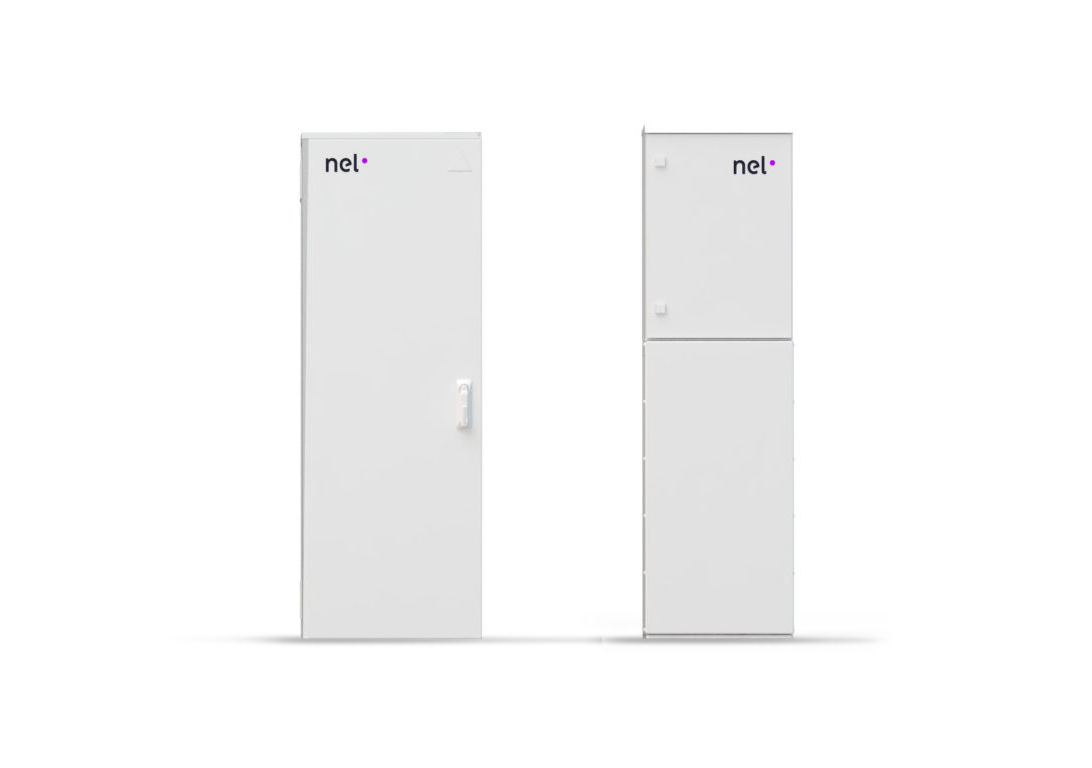

Hydrogen Supply Cabinet and Panel

Fast hydrogen trailer unloading for H2Station™

  • Flexible 20MPa connection interface for any delivery trailer type
  • Automatic unloading sequence optimized for fast and full transfer
  • Safe use and activation of unloading via HMI screen interface
  • Safety interlocks ensure correct connection with delivery trailer
  • Flexible placement at site up to 100 meters from Supply Storage (SS001)

Key features


Operating pressureNominal: 20MPa | Maximum: 24MPa
Unloading process:Automatic – optimized for fast and full transfer
Trailer connection interfaceStandard: DIN 417-1 connection | Optional: flexible connection type depending on specific delivery trailer
User interfaceHMI screen for activation of unloading sequence
Dimensions – Supply CabinetL: 762mm W: 600mm H: 1755mm
Dimensions – Activation HMIL: 503mm W: 300mm H: 1744mm
Weather resistance:Stainless steel enclosure for outdoor installation
Visual appearance:Optional graphical foil with costumer branding
Operating temperature:-20°C to 40°C
Placement at site:Up to 100 meters from Supply Storage (SS001)
Installation platform:Underground pit box for pipe and wire connections
Scope and interface:Turnkey module ready for connection with Hydrogen Supply Storage (SS001).
Safety equipment:Mechanical and Safety Instrumented System IEC61511
Approvals & certifications:– CE marked – PED (2014/68/EU) Notified body Bureau Veritas
