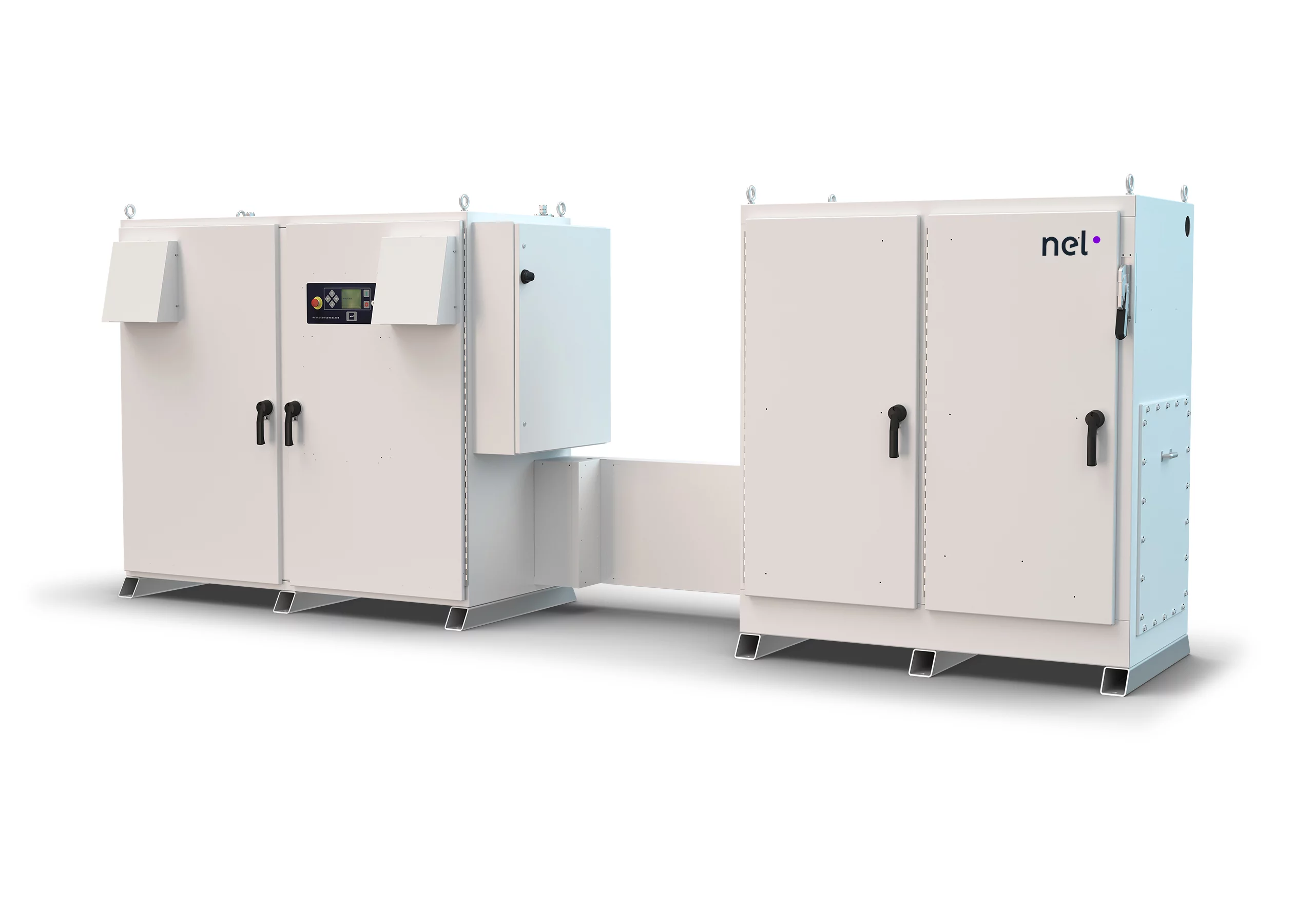

C Series

PEM Electrolyser

10-30 Nm³/h

The C Series electrolysers are ideal for a variety of industrial applications. Producing up to 30 Nm3/h of hydrogen gas at 99.9998% purity, these units replace the need for hydrogen tube trailers or liquid hydrogen storage. They can be containerized, and offer facilities flexible siting and reduced operational safety risks associated with delivered hydrogen.



This product may contain substances for which we are required to provide customers access to an SDS file. Please click here to access all relevant files.

Features

  • Auto fill water level control
  • Automatic leak detection
  • Compact size and quiet operation
  • Load following
  • Minimum maintenance
  • Modular and upgradeable
  • Report alarms

Applications

  • Ammonia Production
  • Annealing
  • Argon Purification
  • Autoconsumption
  • Biofuel Production
  • Biogas/Biomethane Production
  • Biomethanol Production
  • Blast Furnace Injection
  • Brazing
  • Catalytic Atmosphere
  • Chemical Feedstock
  • Chemical Vapor Deposition
  • Coatings
  • Cylinder/Tube Truck Filling
  • Desulfurization
  • Detector Fuel
  • Detector Gas
  • Direct Gas Injection
  • Direct Reduced Iron
  • Energy Storage
  • Extreme Ultravolite Lithography
  • Fertilizer Production
  • Flame Spray
  • Fuel for Fuel Cells
  • Fuel for Hydrogen Internal Combustion Engines (HICE)
  • Fuel for Turbines
  • Glass Polishing
  • Heat Treating
  • Hermetic Sealing – Glass to Metal
  • Hydrogenation
  • Isotope Separation
  • Metal Injection Modling (MIM)
  • Metalorganic Chemical Vapor Deposition (MOCVD)
  • Methanol Production
  • Motor Laminations
  • Nanotechnology
  • Optical Fiber Processing
  • Plasma-Enhanced Chemical Vapor Deposition (PECVD)
  • Powder Metallurgy
  • Powder Processing
  • Power Plant Generator Cooling
  • Protective Atmosphere
  • Purifier Regeneration
  • Remote Power
  • Sintering
  • Space Heating
  • Thermal Spray
  • Waste to Synthetic Fuels
  • Welding

Resources

Electrolysers for Power Plant Generator Cooling

Electrolysers for High Purity Industrial Applications

Alkaline and Proton PEM Electrolysers

Corporate Overview

C Series PEM Electrolysers

Key features

Specifications

C10C20C30
Nominal Production Rate
  Nm³/h @ 0°C, 1 bar102030
  SCF/h @ 70°F, 1 atm3807601,140
  SLPM @ 70°F, 1 atm179359538
  kg per 24 h21.643.065.0
Production Capacity Dynamic Range0-100% net product delivery (automatic)0-100% net product delivery (automatic)0-100% net product delivery (automatic)
Power Consumption by System6.2 kWh/Nm³ (16.3 kWh/100 ft³)6.0 kWh/Nm³ (15.8 kWh/100 ft³)5.8 kWh/Nm³ (15.2 kWh/100 ft³)
Purity99.9998%99.9998%99.9998%
O₂-Content in H₂< 1 ppm v< 1 ppm v< 1 ppm v
H₂O-Content in H₂< 2 ppm v< 2 ppm v< 2 ppm v
Dimensions
  Electrolyser Enclosure – W x D x H2.5 m x 1.2 m x 2 m2.5 m x 1.2 m x 2 m2.5 m x 1.2 m x 2 m
  Power Supply Enclosure – W x D x H1.7 m x 1 m x 2 m1.7 m x 1 m x 2 m1.7 m x 1 m x 2 m
Ambient Temperature5-40º C (41-104º F)5-40º C (41-104º F)5-40º C (41-104º F)
Delivery Pressure30 barg (435 psig)30 barg (435 psig)30 barg (435 psig)
ElectrolyteProton Exchange Membrane (PEM) – Caustic FreeProton Exchange Membrane (PEM) – Caustic FreeProton Exchange Membrane (PEM) – Caustic Free
